Cyber Phasmid

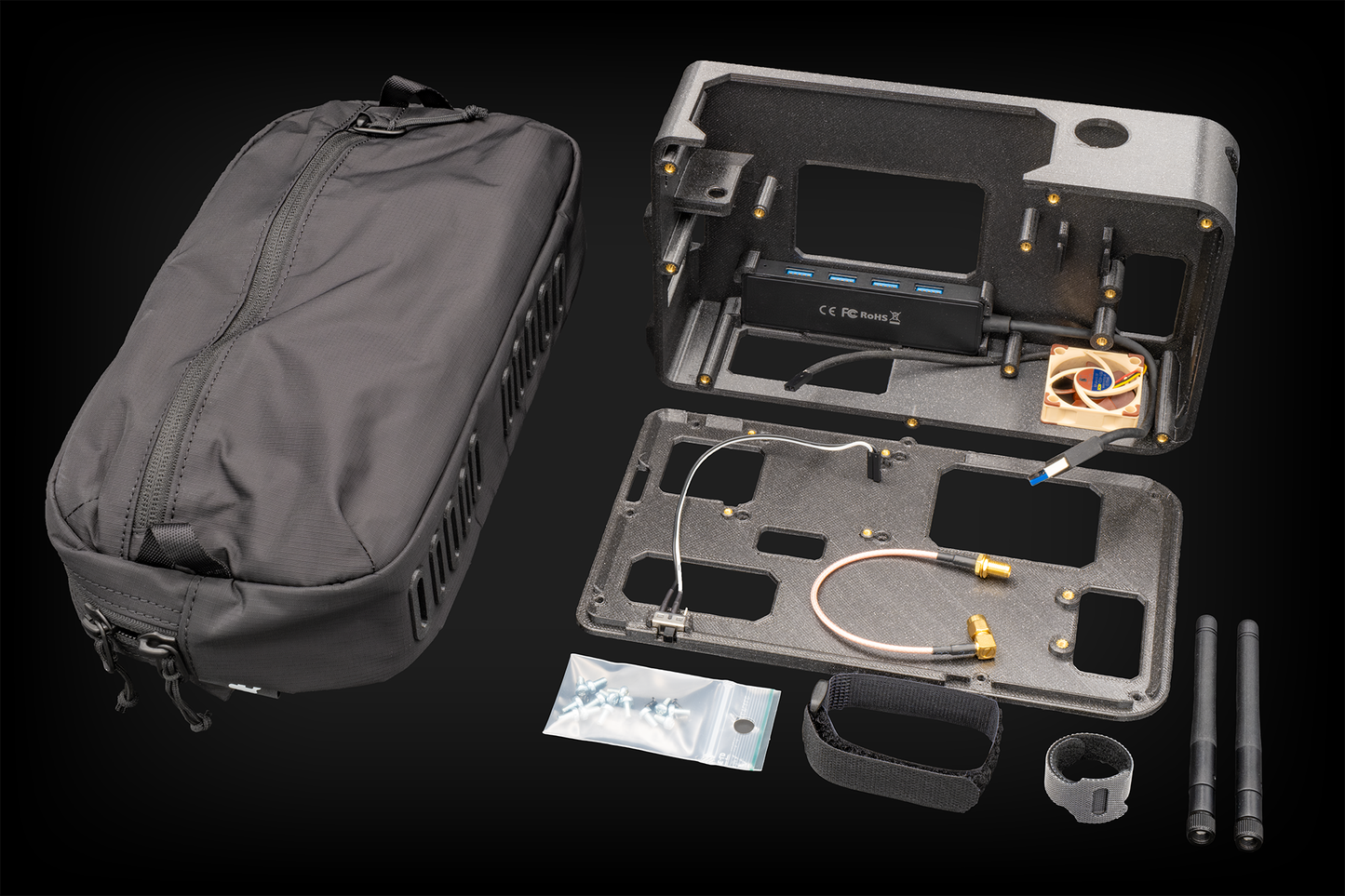

FITTABLE EQUIPMENT:
- 2x ALFA Network AWUS036ACHM
- HackRF One
- NEO-M8N GPS GNSS receiver board (Shop Link)
- Active GPS Quad Helix Antenna, size: 18 mm x 50 mm (Shop Link)
- Maximum extended length of HackRF antenna: 157 mm
- Power Bank: Anker 533
- Raspberry Pi 4/5
- Fan 40mm x 10mm
|
It is possible to mount a Raspberry Pi 4/5 in two ways: with 5mm standoffs or without them. The two mounting areas are located close to each other, with a slight positional shift between them. |
 |
 |
|
The fan is positioned at the bottom for air intake, with an additional opening on the same side for air to exit, ensuring proper airflow. |
 |
 |
RECOMMENDED CABLES:
- 2x Mini USB Right-Angled 10cm
- 1x Mini USB Left-Angled 10cm
- 1x Micro USB 10cm
- 1x USB-C to USB-C Angled 30cm (PowerBank to USB Hub)
- 1x USB-A to USB-C Angled 20cm (PowerBank to Raspberry Pi)
- 1x SMA Cable 15cm
